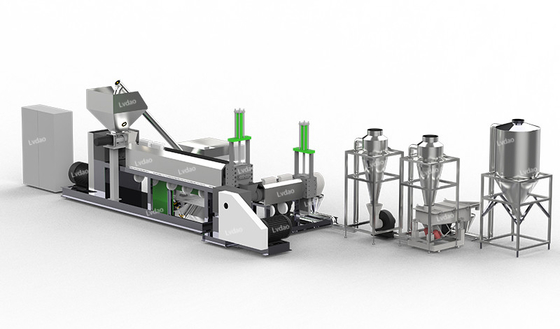

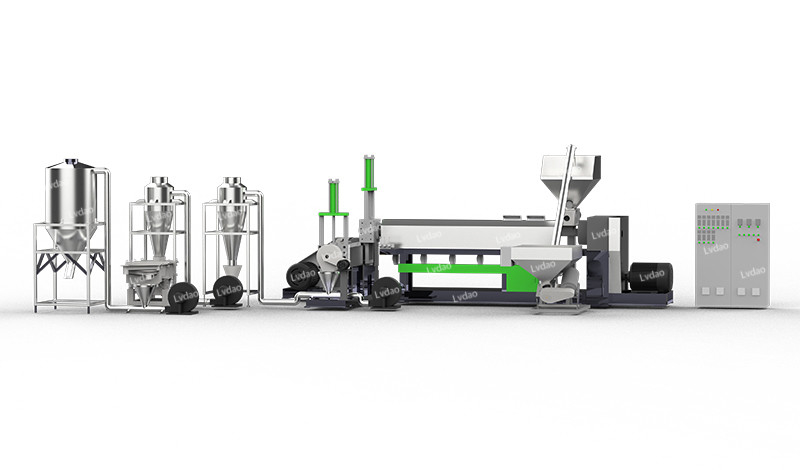

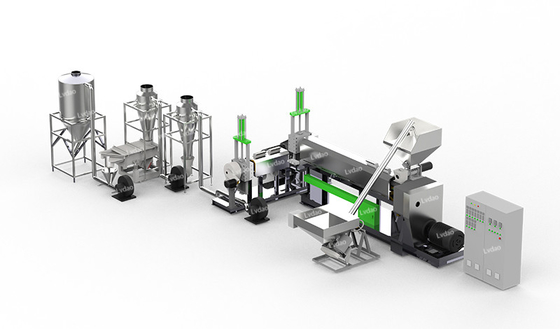

Plastic 380kg/H Capacity 37kw Pvc Recycling Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Lvdao |
| Certification: | CE ISO |
| Model Number: | LDP-SJP-100-120 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | usd |
| Packaging Details: | FILM |
| Delivery Time: | 30 |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Capacity: | 300-380kg/h | Gear Box: | 225-173 |
|---|---|---|---|
| Power: | 37kw-15kw | Color: | Customized |
| High Light: | 380kg/H pvc recycling machine,37kw Pvc Recycling Machine,380kg/H plastic recycling line |
||
Product Description
Product name:
LDP series plastic pelletizing machine
Usage:
It is used for pvc powder commpound and pelletizing.
Option of the pelletizing type:die facing and strand pelletizer.
Advantage:
1. High capacity with single screw
2. It adopts the two-step structure to meet the double-layer filter purpose.The double stage hard scrap pelletizing line can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample ,consolidated and fine luster granules.
3. high-quality gear box, screw barrel and brand motor.
Specification
| Model | screw dia(mm) | Long dia.ratio | Output(kg/h) | Power(kw) |
| LDP-SJP-80-100 | φ80.φ100 | 28:1-10:1 | 150-180 | 22-11 |
| LDP-SJP-90-120 | φ90.φ120 | 28:1-10:1 | 200-250 | 30-15 |
| LDP-SJP-100-120 | φ100.φ120 | 28:1-10:1 | 300-380 | 37-15 |
| LDP-SJP-110-130 | φ110.φ130 | 28:1-10:1 | 400-450 | 45-18.5 |
In-sale services:
1.We supply a series of machine about plastic pelletizing;
2.Accroding to various kinds of material and output, we will provide suitble pelletizin line for you. In case you spend extra money.
3.We can provide machine tests of the whole line if you can send the raw material. Therefore, you can know the condition of machine on the spot or by video we send you.
After-sale services:
1.Engineer service to the customer and training the workers for client;
2,We have 24-hour team to solve the after-sale problem;
3.We have free spare parts with the machine;
4.We always update the new technology to every customer;
5.One year warranty for our machine(except quick-wear parts),under the normal use.
