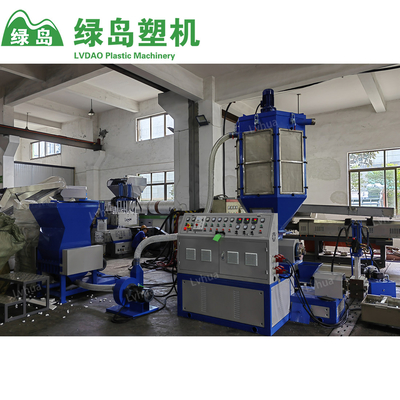

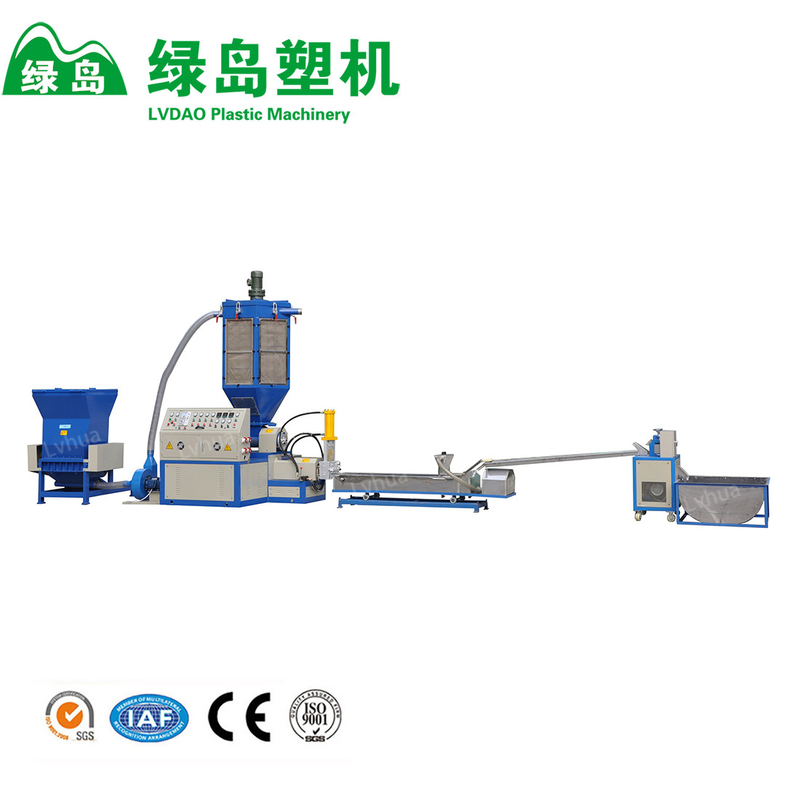

Lvdao EPS XPS foam material double stages 250mm screw plastic recycling machine
Product Details:
| Place of Origin: | China,Ningbo |
| Brand Name: | Lvdao |
| Certification: | CE,ISO |
| Model Number: | LDG-SJP-250-125 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | FOB Ningbo USD 20000-37000 |
| Packaging Details: | wooden package/film package/customized |
| Delivery Time: | 35-45days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 sets per month |
|
Detail Information |
|||
| Model: | LDG-SJP-250-125 | Screw Dia.: | 250mm,125mm |
|---|---|---|---|
| Long Dia.: | 4:1,8:1 | Output: | 0-250kg/h |
| Rotate Speed: | 560r/min | Power: | 55/15kw |
| Color: | Customized Color | Usage: | Plastic Reuse |
| Screw Material: | 38CrMoAl | Final Product: | EPS XPS Pellets |
Product Description
Product Overview
LDG series plastic pelletizing machine
Usage:
This machine is suitable for recycling EPS XPS foam materials. Hot-melted foam and cold-pressed foam are not suitable for this machine because this machine is for loose material.
This machine is suitable for recycling EPS XPS foam materials. Hot-melted foam and cold-pressed foam are not suitable for this machine because this machine is for loose material.
Features:
LDG series is used for EPS,XPS recycling and pelletizing,especially for sorting materials and transform rubbish into treasure. It is an ideal choice for environmental protecting of the supermarket and residential areas. This machine line adopt the fast compact,fast melting, extruding with filter and one-step processing makes the plastic granules.
LDG series is used for EPS,XPS recycling and pelletizing,especially for sorting materials and transform rubbish into treasure. It is an ideal choice for environmental protecting of the supermarket and residential areas. This machine line adopt the fast compact,fast melting, extruding with filter and one-step processing makes the plastic granules.
Products Description
Product Paramenters
| Model | Screw dia.(mm) | Long dia. ratio | Output(kg/h) | Power(kw) | Rotate speed(r/min) |
| LDG-SJP-160-95 | Ø160,Ø95 | 4:1,8:1 | 60-90 | 15/7.5 | 560 |
| LDG-SJP-185-105 | Ø185,Ø105 | 4:1,8:1 | 100-150 | 22/7.5 | 560 |
| LDG-SJP-220-120 | Ø220,Ø120 | 4:1,8:1 | 150-200 | 37/11 | 560 |
| LDG-SJP-250-125 | Ø250,Ø125 | 4:1,8:1 | 200-250 | 55/15 | 560 |
