Lvdao LDK series 140mm 38CrMoAl screw granules making machine LDPE HDPE plastic cutting pelletizing machine
Product Details:
| Place of Origin: | China,Ningbo |
| Brand Name: | Lvdao |
| Certification: | CE,ISO |
| Model Number: | LDK-SJP-140-140 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | FOB Ningbo USD 45000-57000 |
| Packaging Details: | wooden package/film package/customized |
| Delivery Time: | 35-45days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 5 sets per month |
|
Detail Information |
|||
| Model: | LDK-SJP-140-140 | Screw Dia,: | 140mm,140mm |
|---|---|---|---|
| Long Dia, Ratio: | 28:1-10:1 | Rotate Speed: | 10-75r/min |
| Output: | 350-400kg/h | Power: | 90/30kw |
| Function: | Making Waste Plastic Pellets | Advantage: | Long Service Time |
| Screw Material: | 38CrMoAl | Color: | Customized |
Product Description
Product Overview

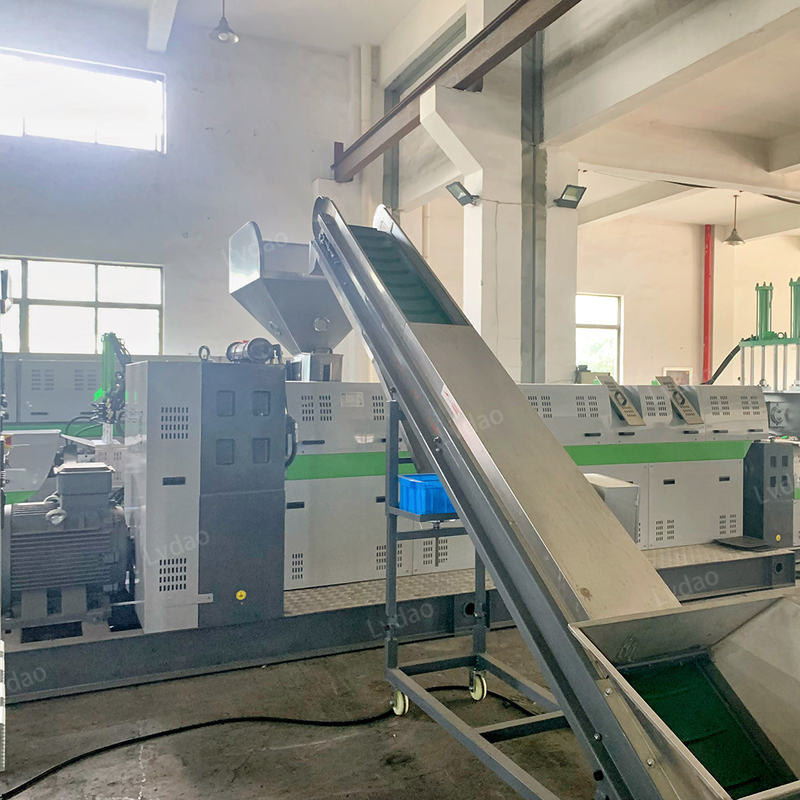

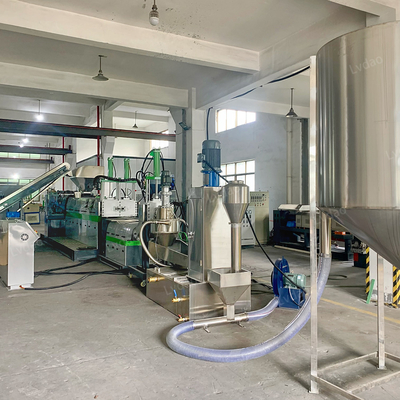

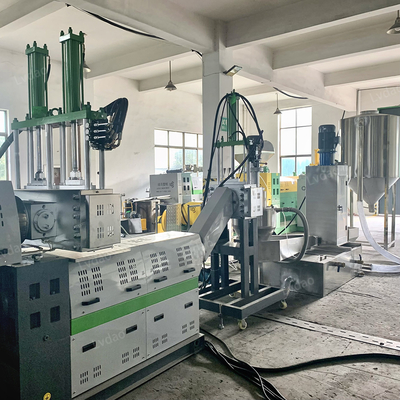

LDK series plastic pelletizing machine
This machine can process LDPE and hope crushed materials. According to the use, vibrating screen shall be equipped for sorting after dehydration. High degree of automation and simple operation and maintenance.The extrusion has high compression, full particles, and the shape is similar to the new slice. It can produce rich, dense and glossy particles.
Characteristics:
1. Very strong and long life: Screw and barrel are made of 38CrMoAlA, inlet mouth treated with special alloy.
2. Easy operation: It has automatic constant temperature control and stable performance. After adjusting well, 1 or 2 workers are enough to run this machine, to feed the materials and change pellet receiver.
3. Low cost in using after redesign:Now this kind machine is more economic in electric power source and also water. In the long working life of this machine, it can save many sources in energy!
4. High output, long operating life and lower noise: it’s the ideal waste plastics regenerative pelletizer machine for nowadays.
Products Description
Product Paramenters
| Model | Screw Dia.(mm) | Long dia. ratio | Output(kg/h) | Rotate Speed(r/min) | Power(kw) |
| LDK-SJP-100-100 | Ø100,Ø100 | 28:1-10:1 | 150-200 | 10-75 | 37/11 |
| LDK-SJP-110-110 | Ø110,Ø110 | 28:1-10:1 | 200-250 | 10-75 | 45/15 |
| LDK-SJP-120-120 | Ø120,Ø120 | 28:1-10:1 | 250-300 | 10-75 | 55/18.5 |
| LDK-SJP-130-130 | Ø130,Ø130 | 28:1-10:1 | 300-350 | 10-75 | 75/22 |
| LDK-SJP-140-140 | Ø140,Ø140 | 28:1-10:1 | 350-400 | 10-75 | 90/30 |
| LDK-SJP-150-150 | Ø150,Ø150 | 28:1-10:1 | 400-450 | 10-75 | 110/45 |
