PP PE ABS PS PC PA 500kg/h High Capacity New Technology Plastic Recycling Machine
Product Details:
| Place of Origin: | Zhejiang China |
| Brand Name: | Lvdao |
| Certification: | CE ISO |
| Model Number: | LDD-SJP-150-140 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | 30000-5000 |
| Packaging Details: | Film Packages |
| Delivery Time: | 35 Days |
| Payment Terms: | D/A, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 30 SETS |
|
Detail Information |
|||
| Model: | LDD-SJP-150-140 | Applicable Material: | PP PE ABS PS ABS PA PC |
|---|---|---|---|
| Capacity: | 500kg/h | Screw Diameter: | 150mm/140mm |
| Screw Rotate Speed: | 10-75r/min | Long Dia.ratio: | 28:1 10:1 |
| Voltage: | Customized | Color: | Green And White |
| Motor: | 90kw/22kw | End Prduct: | Plastic Granules |
Product Description
Usage:
This machine can process a variety of thermoplastic plastics,such as PC,PA,PP,ABS,PE,POM,PET etc. Different from LDC series, this kind of machine has two even three stages.
Features:

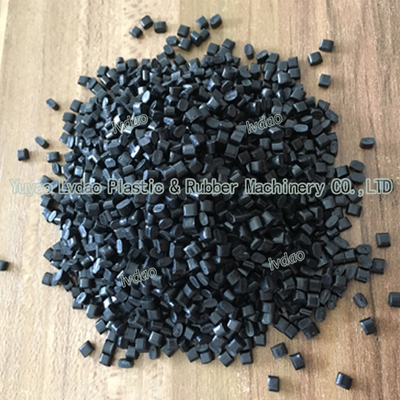

LDD series is used for PP PE ABS PA PS PET crushed material extruding and granule-making. It adopt the two-step structure to meet the the double-layer filter purpose. It can effectively remove the impurities from the recycling material and fully exhaust the gas.It can produce ample,consolidated and fine luster granules.
Material:
PP PE ABS PA PS
Model:
LDD-SJP-150-140
Parameter trable:
| Model | Screw dia |
Long dia. ratio |
Output (kg/h) |
Screw rotate speed(r/min) |
Power (KW) |
| LDD-SJP-80-70 | Φ80 φ70 | 28:1 10:1 | 50-100 | 10-75 | 18.5/7.5 |
| LDD-SJP-90-85 | Φ90 φ85 | 28:1 10:1 | 100-150 | 10-75 | 22/7.5 |
| LDD-SJP-100-95 | φ100 φ95 | 28:1-10:1 | 150-200 | 10-75 | 30/11 |
| LDD-SJP-110-105 | φ110 φ105 | 28:1-10:1 | 200-250 | 10-75 | 37/11 |
| LDD-SJP-120-110 | φ120 φ110 | 28:1-10:1 | 250-300 | 10-75 | 45/15 |
| LDD-SJP-130-120 | φ130 φ120 | 28:1-10:1 | 300-350 | 10-75 | 55/15 |
| LDD-SJP-140-130 | φ140 φ130 | 28:1-10:1 | 350-400 | 10-75 | 75/18.5 |
| LDD-SJP-150-140 | φ150 φ140 | 28:1-10:1 | 400-450 | 10-75 | 90/22 |
| LDD-SJP-160-150 | φ160 φ150 | 28:1-10:1 | 450-500 | 10-75 | 110/30 |
| LDD-SJP-180-160 | Φ180 φ160 | 28:1-10:1 | 500-600 | 10-75 | 132/37 |
