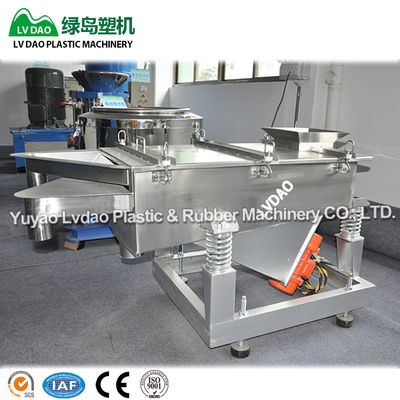

750kg/H 0.2×2kw Vibrating Sieve Machine For Plastic Recycling
|Place of Origin:||zhejiang,China|
|Certification:||ISO CE SGS|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 set|
|Delivery Time:||Goods in stock|
|Supply Ability:||300 sets per month|
|Product Name:||Vibrating Sieve Machine||Max Output:||750kg/h|
|Sievehole Dia.:||2-20kw||Vibration Rate:||0-2.5×2|
|Upside Outlet Height:||740mm||Middle Outlel Height:||650mm|
|Downside Outlet Height:||500mm||Outer Dimension:||1780*790*960mm|
0.4kw vibrating sieve machine,
750kg/h vibro sieve machine,
750kg/h vibrating sieve machine
Upside outlet height 740mm shaker separator for plastic LD SZ 04 downside outlet height 500mm
1. Shaker separator for plastic uses the vibration motor as vibration source, so that the material in the sieve was tossed at the same time move forward in a straight line.The material evenly from the feeder into the screening machine feed port, through the multi-screen net generation of material specifications of the sieve, and sieve materials were discharged from their export.
2. This vibrationg sieve machine is applicable for the plastic granule grading.
3. Shaker separator for plastic series use centrifugal force generated on the vibration motor machine to obtain exciting force.The exciting force makes the sieve body and materials move up and down repeatedly.After filtered by two layers of net, the materials are divided into three levels according to diameters of the sieves so as to reach ideal separation effect.
1. Totally enclosed structure automatic row material is more suitable for assembly line .
2. Fine and durable design,easy to operate.
2. Convenient and rapid net changing and cleaning.
3. All contact parts of this kind of machine are made of stainless steel to ensure the purity.
4. Less malfunction,easy maintenance and convenient repairing.
5. Except standard configuration,diameter of sieve holes may be tailored according to customers' requirements.
6. Less energy consumption, low noise ,long duration .
7. The screen body parts adopt rolling steel sheet and profiles welded together (part of the body) for bolt connection between the overall stiffness is good, solid and reliable .
|Sievehole dia.(kw)||Power(kw)||Vibration rate||Upside outlet height(mm)||Middle outlet height(mm)||Downside outlet height(mm)||Out dimension(mm)||Weight(kg)|
Packaging & Delivery:
1. We can provide custom-made packaging.
2. Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent.
1. Since 1992, professional manufacturer of plastic recycling machinie and pelletizing machine ;
2. The biggest manufacturer of plastic pelletizing machine in zhejiang province .
3. 3000 pcs quatity of pelletizer in one year .300 pcs quantity of recycling machine in one year.
4. Promise:We will provide technical support for all lifetime with over 20 years experiences.
