250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine

Product Details:

Place of Origin: Ningbo, China
Brand Name: LVDAO
Certification: ISO9001,CE
Model Number: LDA-SJP-150-140

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: USD 35000
Packaging Details: Customer-made
Delivery Time: Received the advanced money 35 days
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Model: LDA-SJP-150-140 Material: PP PE Dry Film
Feeder: Force Feeder Motor Power: 90kw
Capacity: 250kg-300kg/h Screw Diameter: 150mm
Screw Rotate Speed: 70r/min Long Dia.ratio: 25:1
Voltage: Customized Color: Consumer Choice
End Product: Plastic Granules
High Light:

plastic recycling machine

,

plastic granulator machine

Product Description

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 0

Production descriptions:



High compression design of the screw and conical structure,increase the output,and power saving.
according to the detailed plastic,double stage extruder can be adopted.
Use:
It is used for pp pe film etc soft plastic material recycling and pelletizing.
Material:
Dry pp/pe film etc soft plastic material





Features:



1. Lower power consumption.
2. Low noise, work stable and durable.
3. Modular principle design for screw configuration and barrel setup makes combination and cleaning convenient , also easy to adapt to customers' requirements .
4. Screw elements and kneading blocks are made of high tool steel , with high corrosion-resistant and high wear- resistant.
5. Barrels are made of high quality nitrided steel, corrosion proof .
6. Vacuum system fulfills devolatilization to ensure the quality of polymer processing.





Specifications:

Model Long dia ratio Output(kg/h) Screw rotate speed(r/min) Power(kw) Center height(mm)
LDA-SJP-80 25:1 70-80 70 18.5 700
LDA-SJP-90 25:1 800-100 70 22-30 700
LDA-SJP-100 25:1 100-120 70 30 750
LDA-SJP-120 25:1 130-150 70 37-45 750
LDA-SJP-130 25:1 150-170 70 45-55 800
LDA-SJP-140 25:1 180-220 70 55-75 800
LDA-SJP-150 25:1 240-300 70 90 800


Detail images:

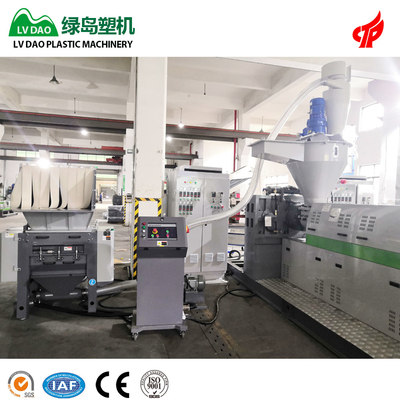

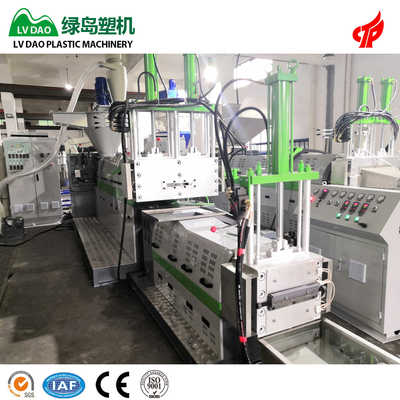

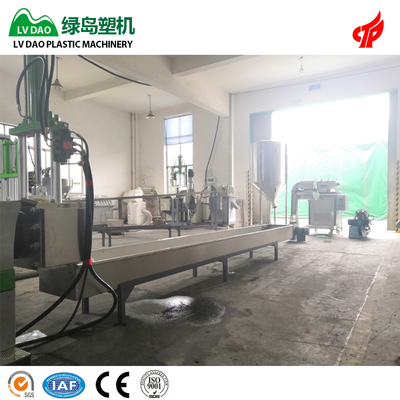

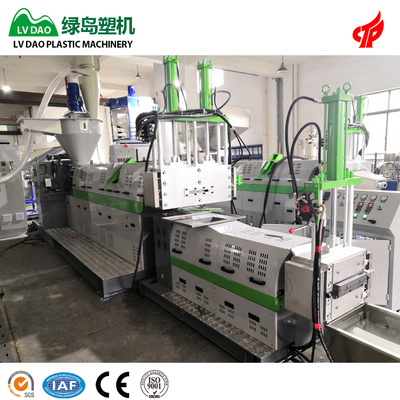

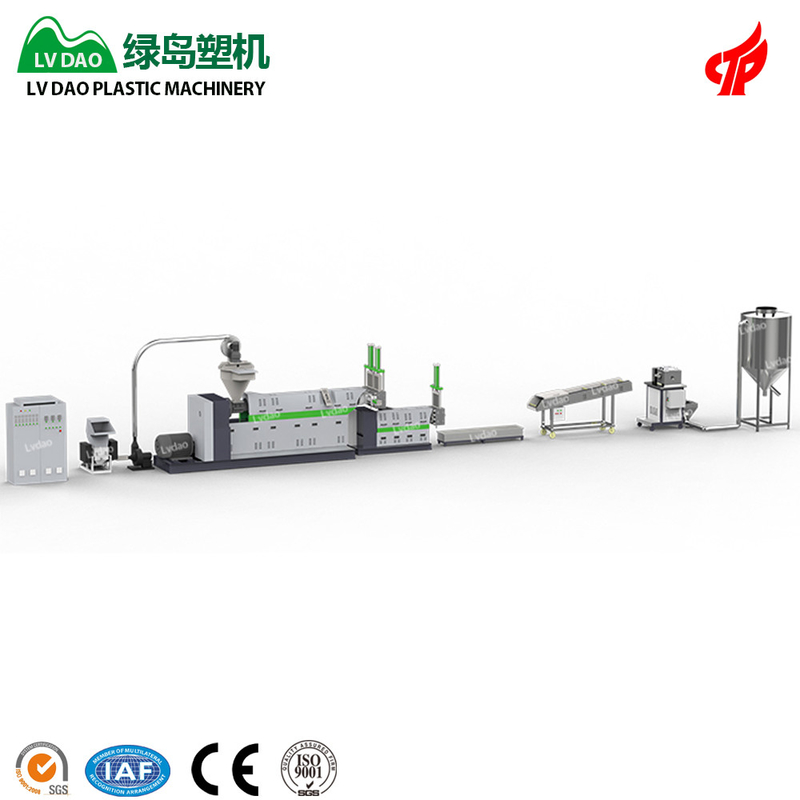

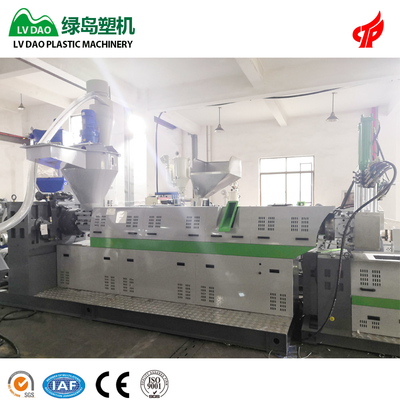

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 1250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 2

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 3

Company Information:

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 4

Yuyao lvdao plastic and rubber machinery Co.,Ltd.(lvdao plastic machinery) is a professional manufacture of plastic Recycling machine and pelletizing extrueder,and it has been in the plastic Recycling field for almost two decades.



Our branch Office put into operation in August 2011.The site covers an area of twenty thousand square meters.We have modern technology center and all kinds of processing equipment with testing facilities. Our company always take customer satisfaction as purpose,customers constantly support and identity. Always continue expanding our market and promoting our technology progess.



Our equipment have already had many invention patents now. Passed ISO9001:2008 certification. The plastic pelletizing unit has passed the CE authentiction security. In 2007 our LDA series are on national torch plan projects. In2008 Our company was awarded the ningbo high-tech enterprises.And the company take the national innovation fund projects in 2009.

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 5

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 6

Packing Shipment

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 7

Packaging & Delivery:

1. We can provide custom-made packaging.
2 . Prompt deliver at the very day.
3. Well-trained and disciplined packing team.
4. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
5. Sophisticated and professional logistic agent..



Exhibition:

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 8

Certificate:

250kg-300kg/h PP PE Film Automatic Crushing And Loading Force Feeder Plastic Pelletizing Machine 9

Our Services:

In-sale services:
1.We supply a series of machine about plastic pelletizing;
2.Accroding to various kinds of material and output, we will provide suitble pelletizing line for you. In case you spend extra money.
3.We can provide machine tests of the whole line if you can send the raw material. Therefore, you can know the condition of machine on the spot or by video we send you.

After-sale services:
1.Engineer service to the customer and training the workers for client;
2,We have 24-hour team to solve the after-sale problem;
3.We have free spare parts with the machine;
4.We always update the new technology to every customer;
5.One year warranty for our machine(except quick-wear parts),under the normal use.



FAQ:

Q:Are you machinery factory or trading company?

A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.



Q: Which kind of machine do you make?

A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.



Q: How can we visit your company and machines?

A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.



Q:Can you customized machine?

A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
