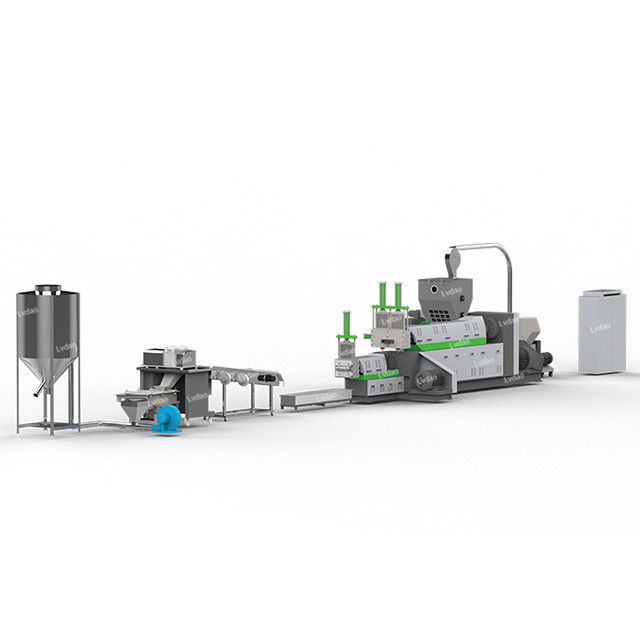

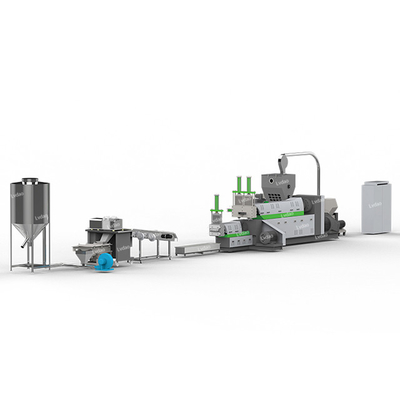

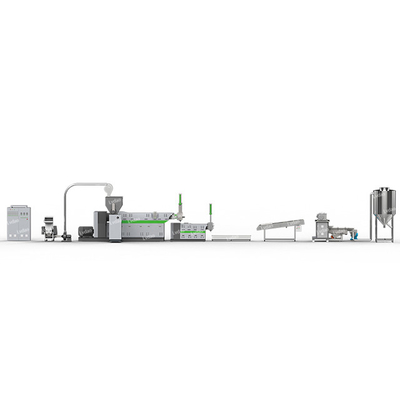

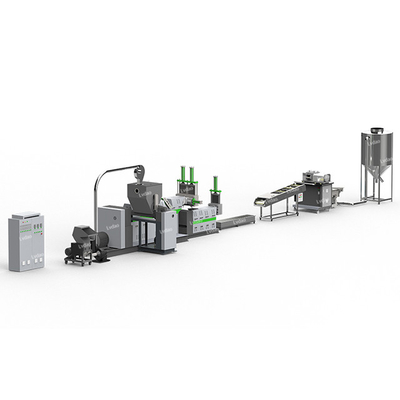

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine

Product Details:

Place of Origin: China
Brand Name: Lvdao
Certification: CE ISO
Model Number: LDS-SJP-180-160

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Packaging Details: 1.Film package 2.According to the request of the consumer
Delivery Time: After receive the deposit 35 days.
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Get Best Price Contact Now

Detail Information

Model: LDS-SJP-180-160 Motor Power: 132kw+37kw
Capacity: 500-600kg/h Screw Diameter: 180mm-160mm
Screw Rotate Speed``: 73r/min Long Dia.ratio: 25:1-10:1
Voltage: Customized End Product: Plastic Granules
Color: Consumer Choice Appliciable Material: PP PE Wet Or Dry Film
Weight: 8000kg Warranty: 1 Years.
After-sale Service: On-site Installation And Debugging Condition: New
High Light:

600kg/h plastic waste recycling machine

,

169kw plastic waste recycling machine

,

180mm plastic waste recycling machine

Product Description

Side Feeder plastic waste recycling machine with 1 years Warranty







Feature:

1) This plastic recycling machine is suitable for both soft film and hard scrap,dry material and wet material.

2) You can choose crusher with blower or conveyor to feeder the material according to your demand.

3) Side feed can avoid the blocking caused by force feeder,especially for high capacity machine.

4) You can choose water tank or hot cutting system.

Use:

Side feeder plastic recycling machine can also recycle soft film and hard scrap.dry material and wet material.It is new design and powerful.

The capacity is from 100kg/h-500kg/h.Side feed can avoid the blocking caused by force feeder,especially for high capacity machine.It can improve the capacity when solve the feeding problem.

Material:

PP PE Film

Parameter trable

Model

Screw dia

(mm)

Long dia ratio

Out put

(kg/h)

Screw ratate speed

(r/min)

Power

(kw)

LDS-SJP-120-115 120,115 25:1-10:1 150-200 70 45-15
LDS-SJP-130-120 130,120 25:1-10:1 200-250 70 55-18.5
LDS-SJP-140-130 140,130 25:1-10:1 250-300 70 75-22
LDS-SJP-150-140 150,140 25:1-10:1 300-400 70 90-30
LDS-SJP-160-150 160,150 25:1-10:1 350-450 70 90-30
LDS-SJP-170-150 170,150 25:1-10:1 400-500 70 110-37
LDS-SJP-180-160 180,160 25:1-10:1 500-600 70

132-37



Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 0

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 1Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 2Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 3Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 4



                           Company information

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 5

Yuyao lvdao plastic and rubber machinery Co.,Ltd.(lvdao plastic machinery) is a professional manufacture of plastic Recycling machine and pelletizing extrueder,and it has been in the plastic Recycling field for almost two decades.

Our branch Office put into operation in August 2011.The site covers an area of twenty thousand square meters.We have modern technology center and all kinds of processing equipment with testing facilities. Our company always take customer satisfaction as purpose,customers constantly support and identity. Always continue expanding our market and promoting our technology progess.

Our equipment have already had many invention patents now. Passed ISO9001:2008 certification. The plastic pelletizing unit has passed the CE authentiction security. In 2007 our LDA series are on national torch plan projects. In2008 Our company was awarded the ningbo high-tech enterprises.And the company take the national innovation fund projects in 2009.

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 6

                                       Hot Product

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 7

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 8

                              Packing and shipping

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 9

                                       Exhibition

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 10

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 11

                                       Certification

Side Feeder 600kg/H 180mm Plastic Waste Recycling Machine 12

Our service:

In-sale services:
1.We supply a series of machine about plastic pelletizing;
2.Accroding to various kinds of material and output, we will provide suitble pelletizing line for you. In case you spend extra money.
3.We can provide machine tests of the whole line if you can send the raw material. Therefore, you can know the condition of machine on the spot or by video we send you.

After-sale services:
1.Engineer service to the customer and training the workers for client;
2,We have 24-hour team to solve the after-sale problem;
3.We have free spare parts with the machine;
4.We always update the new technology to every customer;
5.One year warranty for our machine(except quick-wear parts),under the normal use.

FAQ:

Q:Are you machinery factory or trading company?

A:We are machinery factory with 20 years experience in Ningbo. And we can export machines by ourselves.



Q: Which kind of machine do you make?

A: We mainly produce plastic recycling machine,pelletizing machine and other auxiliary machine , according to the different raw material, different output and different industrial voltage in working place,you can choose different machines.



Q: How can we visit your company and machines?

A:Our factory is located in Ningbo City,near Shanghai and Hangzhou. About 3 hours away from Shanghai International Airport.



Q:Can you customized machine?

A:We can make the products following the customers' requirement,like the shape,size,color,logo and other spec details.
