    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation

    Product Details:

    Place of Origin: Ningbo, China
    Brand Name: LVDAO
    Certification: CE ISO
    Model Number: LD-MD-05

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: Negotiable
    Packaging Details: Customer-made
    Delivery Time: Received the advanced money 40 days
    Payment Terms: L/C, T/T
    Supply Ability: 30 sets per month
    Get Best Price Contact Now

    Detail Information

    Voltage: Customized Filter Area: 220*200
    Screw Dia: 120 Condition: New
    Hole Number: 22 Warranty: 1 Year
    Die Cube: 0.5 Application: Plastic Recycling
    Color: Customer Choice Name: Plastic Vertical Making Machine
    Product Name: Plastic Electric Double Screen Changer Screw Design: Single Or Double
    Advantage: Not Have To Stop The Machine
    High Light:

    continuous screen changer

    ,

    plastic extrusion screen changer

    Product Description

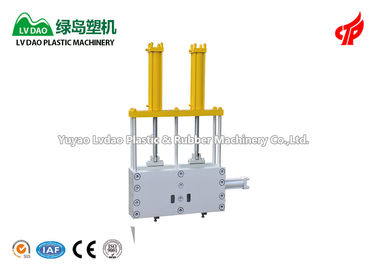

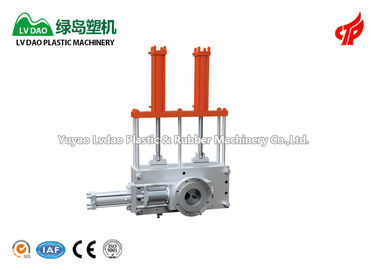

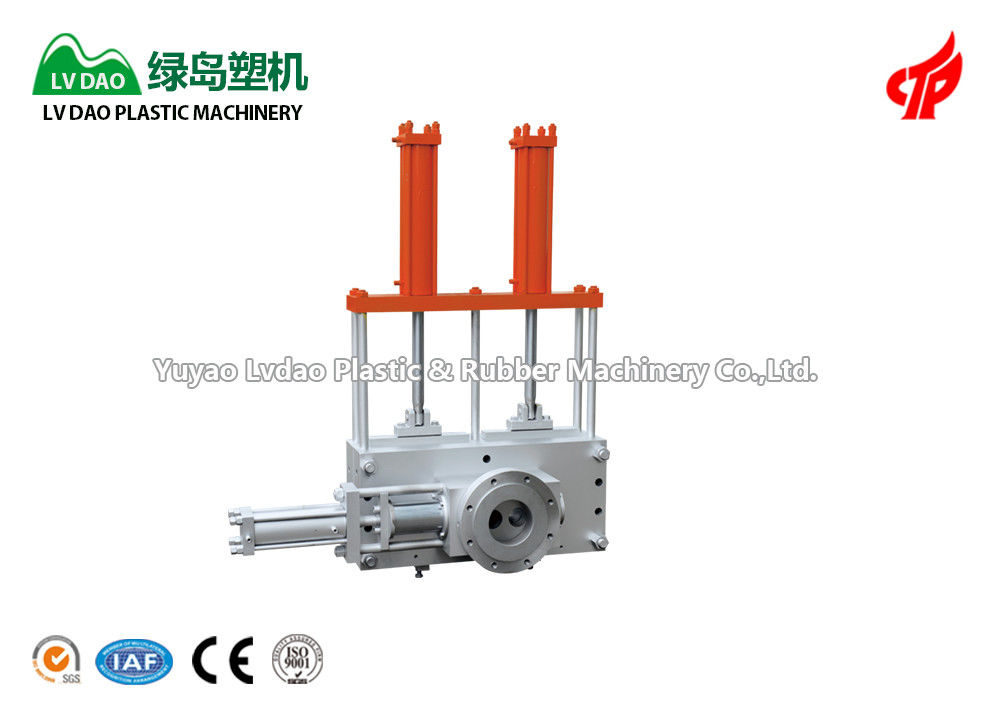

    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation

    Direct Factory High Quality New Technology Double Hydraulic Screen Changer

    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 0
    Production description:
    Double plate working station screen changer can automatically compensate the sealing clearance. It is widely used for high production devices. When it operates, two screen works concurrently. One screen operates, the other screen changes, thus the material flow will not stop and the screen changing can complete without machine halt. When two screen unit works simultaneously, the filter area is twice that of single screen unit. Since the screen changing process is continuous, it will not cause apparent pulsation for extruders, thus improves the stability of the products.


    The structure:

    1, two pieces of slide plate instead of one slide plate

    2, one screen cavity on each slide plate instead two screen cavities on one slide plate.

    3. The main body of the screen changer

    4. Hydraulic unit with accumulator electrical controlling pack (This part is optional choice by customers)


    Features:
    1) Two round removable breaker plates on each slide plate.
    2) "Continuous type" means operation of screen change without machine halt or disruption of melt flow.
    3) Equipped with air venting system.
    4) Fit for almost all kinds of polymers.

    Modle:
    LD-MD-04

    ModleFiter areaScrew areaHole NumberDie cube
    LD-MD-01160*16080140.35
    LD-MD-02180*18090160.4
    LD-MD-03200*200100200.45
    LD-MD-04220*220120220.5
    LD-MD-05240*240130260.55
    LD-MD-06250*250135280.6
    LD-MD-07280*280145300.65
    LD-MD-08300*300150300.65


    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 1Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 2Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 3Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 4
    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 5Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 6Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 7Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 8Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 9Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 10
    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 11

    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 12Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 13

    Automatic Plastic Screen Changer Plastic Vertical Making Machine Easy Operation 14
