    Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm

    Product Details:

    Place of Origin: China
    Brand Name: Lvdao
    Certification: CE, IAF, SGS, ISO9001:2008
    Model Number: LDT-SJP-120-110

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: $31000-31800 USD/set
    Packaging Details: film packaging
    Delivery Time: 30-40 work days
    Payment Terms: T/T
    Supply Ability: 300 sets/ per year
    Get Best Price Contact Now

    Detail Information

    Condition: New Type: Pelletizer Machine Line
    Capacity: 180-200kg/h Band Name: Lvdao
    Material: PA6, PA66 Voltage: Customized
    Motor Power: 45kw(main Motor) Dimension: APPROX. 15*3*2.5(L*W*H)
    Weight: APPROX. 5000kg Certification: CE, IAF, SGS, ISO9001:2008
    Warranty: 1 Year After-sales Service: Engineer Oversea
    Usage: Plastic Pelletizing Final Product: PA Pellets
    Motor Band: WN Colour: Customer Depend
    Stage Type: Two Stage Screw Size: 120*170*3300mm
    Advantage: Long Service Time Automatic Grade: Semi-Automatic
    High Light:

    plastic recycling machine

    ,

    plastic waste recycling machine

    Product Description

    Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm

    Customized Waster PA Carpet Plastic Pelletizer Machine Line 120 * 170 * 3300mm



    Our machine function is pelleting recycling plasitc. Sorting and grouping plastic materials according to resin type is an important first step in the recycling process because contamination can render a batch of material un-reusable. The most frequently recycled resins, Polyamide (Nylon, PA), must be carefully separated from one another in order to enable further processing. Contaminants within each type of plastic must also be removed from the base resin to ensure stock purity.





    Plastic Polyamide (Nylon, PA) Pelletizer Machine is designed for the pellet and re-pellet production obtained from plastic, especially forcused on PA ranulation.
    The granules that the LVDAO particle cutting machine produce are uniform and beautiful.



    Advantages:
    1) noodle water-cooling cutting , ensures good shape.
    2) fhaving 2 filtrations. ensuring the purity of final pellets
    3) Extrude more evenly, having more stable output and better pellets

    4) CE, IAF, SGS, IOS9001:2008 Certificate
    5) Long service life
    6) Customized
    7) Engineers available overseas



    Specifications


    Feeding

    Hand feeding/ feeding machine system

    Extruder Single screw, Two stage extrusion
    Cutting Type Strand (noodle) type pelletizing
    Cooling Type Water cooling

    Product


    Plastic pellets/granules

    Material Type


    PA scrap

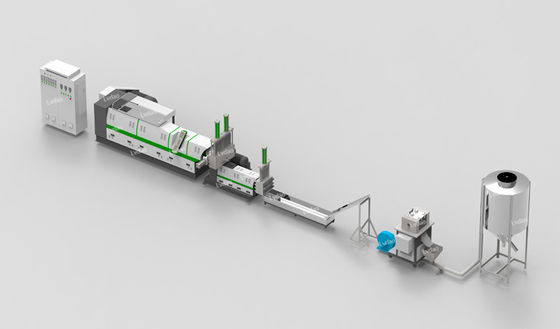

    Machine Components


    Cabinet,extruder,water cooling tank,blower,cutter,silo
    Output range 100kg~ 450 kg/h
    Screw Diameter 80~150mm (customized)
    Screw L/D

    23:1 (customized)


    Screw Material 38CrMoAL
    Voltage Customized based on request (For example: USA 480V 60Hz, Mexico 440V/220V 60Hz, Saudi Arabia 380V 60Hz, Nigeria 415V 50Hz...)
    Delivery Time 50days for customized machine.
    Warranty 1 year
    Technical Assistance Engineers available to service machinery overseas

    Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 0Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 1Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 2Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 3

    Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 4Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 5Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 6Waste PA Carpet Plastic Pelletizer Machine Line Customized 120 * 170 * 3300mm 7



    Pelletizing reclaimed plastic is the final step in most recycling processes. Converting post-consumer plastic into pellets allows for easier distribution and remanufacturing, and ultimately benefits the speed and effectiveness of reintroducing recycled plastic into industrial manufacturing. After sorting, drawing, separating, and drying the reclaimed material, the flake stock is ready to be extruded into pellets.



    Plastic recycling pelletizer  series depends on plastic itself, which plastic are you recycling , different plastics have different application.If your want know more, feel free to contact US
